Friday, June 6, 2008
Self and Design Evaluation
Scope of Project
Background Information
The Hospital Bed Rail Device is a device that is designed to prevent entrapment in all 7 danger zones in hospital beds. Entrapment is any case where a patient gets trapped within the bed rails of the bed frame in a hospital bed. Entrapment can lead to serious injury or death. Between January 1, 1985 and January 1, 2006, the FDA received 691 incidents in which patients were caught, trapped, tangled, or strangled in hospital beds. Of those reported incidents, 413 were deaths, 120 nonfatal injuries, and 158 cases where staff needed to intervene to prevent patient injuries.
Although that may not seem like a high number of cases of entrapment, it still is an issue in the medical community. The FDA first alerted the hospital and nursing home community to this problem in 1995. Since then the Hospital Bed Safety Work Group comprised of representatives from the FDA, hospital bed manufacturers, healthcare organizations such as the American Nurses Association and the American Healthcare Association, consumer groups such as the AARP, and other government agencies have worked together to investigate the problem, identify its causes, and find solutions.
The 7 danger zones include: within the rail, under the rail, between the rail and the mattress, between rails, at the end of the rail, between split bed rails, between the end of the rail and the side edge of the head or foot board, between the head and footboard and the mattress.

Design Brief
To design and construct a device that would eliminate the risk of entrapment in all 7 zones in hospital beds.
Description of Solution
Two of the alternative solutions were adapted to become the final solution. The only change was the addition of a mesh material to the centers of 3 of the 4 sides so that patients can see out. The mesh sections were designed to be removable in case of an emergency. Another addition was a Velcro system to the sides of the device so that it can be attached to one another and stay together firmly on the bed.
Discrepancies Between Original and Final Solution
The first thing that had to change during the long construction process of this device was the mesh section at the head board. At first it was designed to have mesh sections in all 4 pieces. However, after the construction of the first model Ms. Green suggested that the headboard section shouldn’t have a mesh insert since patients wouldn’t be looking out of the headboard.
The next thing that needed to be changed was the shape of the bottom of the foam. When this device was first designed it had a 1” bottom. The shape wasn’t really working as planned and finally it was changed. The 1” bottom was too thick to fit between the frame of the bed and the mattress. So the shape was changed to be a triangle on the bottom, leaving the smallest amount of foam possible between the frame and the mattress.
Another thing that changed was the placement of the zippers for the mesh inserts. At first they were located in the middle of the side and footboard pieces as you can see in the model. However, once the zippers were attached to the foam pieces, it became clear that it was difficult to zip and unzip them. So the design was again changed to place the zippers on the outside. This made it easier to construct and easier to zip and unzip.
Another change was the inserts between the top pieces of the foam and the bottom. This gave the top more support so that it could stay up firmly. It also fixed the odd shape that resulted to that piece of foam during the sewing of the top.
The final change during the construction of this project was the addition of Velcro down the two side pieces to attach the mesh. The zippers were too long and weren’t working out the way they were designed to, so they were changed to Velcro.
Successes and Failures
Successes
Overall the device was a success. It fit on the bed properly and prevented entrapment in 6 of the 7 danger zones. The mentors felt that the device could be washed and sanitized and that it would be sterile enough to use in a hospital setting. They also felt that the device would be useful in many settings in the hospital.
During the construction of this device I had many successes with the parts that I built. Most of the parts came out to be exactly the way that they were designed to.
Failures
Although the device was a success overall, some aspects didn’t work as well as planned. The sides of the device ended up being shorter than they needed to be resulting in the failure of zone 6 as seen in Figure 2. The device also pinched when the bed was in the upright position as seen in Figure 3.
I also had some failures during the construction of this device. When I cut the foam I didn’t look at my 3D Isometric rendering and I ended up cutting the holes in the foam for the side pieces in the wrong places. I also did the same thing during the measuring and cutting of the vinyl for the side pieces as well.
The biggest failure during the whole construction process was the failure of our sewing machine here at MAST. After three weeks of attempting to sew the vinyl I had to take it to an industrial sewing machine in order to get the vinyl sewn. Finally it was finished and I could continue the construction process. The sewing machine problem was a major setback. It made me push the construction of my progress back three weeks.
What I have learned from my failures
The main lesson I learned from my failures is to measure twice and cut once. By not measuring twice and double checking my measurements I made more work for myself in the end. I had to fix the foam and the vinyl where I measured wrong.
I also learned time management from my failures. At first when one part of my project wasn’t going as planned I just stopped working until that problem was done. About halfway through my construction I realized that while someone else was working on one part of my project outside of school I could move on to another aspect of my project in school to save myself some time.
Additional Learning
Throughout the course of this project I have learned so many different things. I think the most valuable thing that I took out of this was learning how to do things on my own. I always rely on other people to help me when I have problems. Working alone on this project made it hard for me to rely on other people because most of the time they had no idea what I was talking about when I asked them to do something for me.
Another thing that I learned during this project was how to use a sewing machine. Although I never successfully used the machine at school on my project, I did learn how to thread the machine and run fabric through. Now if I ever need to sew something again I will know how.
One final important thing that I learned was how to manage my time. This project has tons of different things that need to get done in and out of school. It is vital to manage your time efficiently in order to complete this project on time. By learning how to decide what things are more important than others you learn how to prioritize your time so that you get the most out of it. In addition it is important to learn what things can be done at home and what things need to be done in school. This allows you to use your time in school to use the school’s resources and complete that part of the project. When I finally learned all of this I realized how much time I had wasted during the beginning of the year when I could have been doing some of my work at home and some of my work in school.
Design Flaws and Improvements
Design Flaws
After I tested the device at the hospital I evaluated it. I found that overall the device worked but there were about 5 flaws that needed to be improved or maybe even changed.
The first flaw was the length of all of the pieces. None of them reached all the way to the ends of the mattress as designed. They all needed another 6-10 inches in length. Once that addition length was added, the device would be able to successfully block entrapment in zone 6 and therefore would prevent entrapment in all 7 zones.
Another flaw that was discovered was the supports inside the holes in the side rail pieces. It was concluded that the supports were necessary on both of the side rail pieces. It was also concluded that the supports needed to be placed so that the device wouldn’t bend too much when the bed was in the upright position. However, the placement of these supports wasn’t clear to the evaluators at the time.
Improvements
One improvement that one of the mentors felt was necessary was the addition of some elastic straps to the bottom of the side devices. This would allow the devices to give each other support while holding them onto the bed in case the rails were put down during an emergency.
Another improvement deemed necessary was the addition of straps from the head and footboard pieces around the actual head and footboard. This would hold those two sections in place better and would prevent any movement the patient might be able to make on the device while in the bed.
Problem Solving Skills
This project helped me improve my problem solving skills a great deal. Not only did I solve the problem of preventing entrapment in all 7 zones in a hospital bed, but I solved mini problems throughout the whole project. When I measured and cut my foam and vinyl wrong I had to use problem solving skills in order to fix them. I also used problem solving skills during the developmental work of my project when I had to get the bottoms of the device to line up at the proper angle. This project improved my problem solving skills by teaching me to solve problems on my own. Nobody else knew all of the details of my project so it was hard for them to help me solve problems. This allowed me to learn how to solve problems on my own.
Communication Skills
This project helped improve my communication skills in a few ways. First it helped me learn how to communicate with teachers so that they could help me with my project. It also helped me improve my communication skills among my peers. When my peers would ask to help me I had to tell them exactly what to do in order for them to complete the task correctly. I think it helped me improve my communication skills with strangers the most. When I had to contact a company over the phone I had a hard time. By being forced to call companies and talk to mentors to help with this project I have learned how to communicate with people that I don’t really know in a polite fashion.
Organizational Skills
Like I stated earlier, this project definitely helps improving organizational skills. Not only do you have to make and organize a calendar at the beginning of every marking period, but you have to stick to that calendar as the marking period continues. Also, you learn how to organize your time to make the best use of the time that you have. This project definitely helped me learn time management. I learned how to multitask and make use of all of the time and resources available to me.
Conclusion
Overall I am really glad that I chose systems over oceanography. I think that by designing a project that is directly related to what I want to pursue in college, I got to learn a lot of things that will be useful to me in the future. I was also really proud of myself for designing a project on my own and finishing it. When I took the device to the hospital and put it on the bed my device actually fit. Seeing that gave me one of the best feelings. I finally felt satisfaction in the work that I had done since the beginning of the year. I am really happy that I actually put in the time and devoted myself to finishing my project. I think that all of the students in this class should do the same. Not only did I learn a ton of different skills that will help me in the future, but I also learned that if I set my mind on something I can do it.
I also think that this project may go somewhere one day. The hospital thinks that it should be patented because someone may want to buy it. When I think of it like that I am amazed. I would love to pass this project on to another student so that they could fix the flaws and together we could patent the device. I think it would be great to design something that will work and maybe one day even save lives.
I think that this year has been very successful. I feel like I completed a project that I am proud of. I also feel that I have learned many valuable lessons that I will be able to use in my immediate future at college and maybe even after that.
posted by ck @ 12:53 PM   0 comments
Tuesday, May 20, 2008
Testing Pictures


How Mr. Alfonse was feeling when we didn't have a bed to test on.



Eric testing zone 7.



Eric testing zone 7 again.

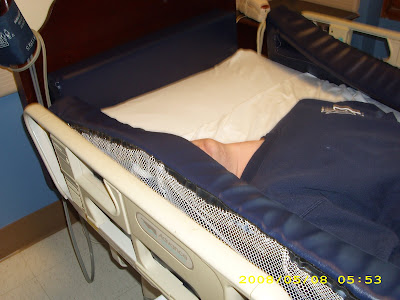

Eric testing to see if he could fit underneath the device and rails.



Eric testing to see if he could fit his head between and underneath the bed rails.



Caiti testing to see if she could fit undernead the device and the rails.



Caiti in distress trying to fit her head, neck, or chest in the device.



Fitting the corners of the device together.



Picture of the pinch point we were attempting to fix.
posted by ck @ 9:38 PM   0 comments
Friday, May 16, 2008
Construction Pictures


Measuring and drawing the lines on the vinyl according to the pattern so that the vinyl can be cut and sewn.



Cutting the vinyl according the the pattern before it is sewn.



Breaking the sewing machine at school while trying to sew the vinyl. The vinyl was too thick and kept breaking the needles. Eventually it was sent to an industrial sewing machine.



Cutting the foam pieces using the large knife.



Final foam pieces after being cut.



Cutting the foam using a hot wire.



Glueing the end pieces of the vinyl to the ends of the foam pieces.



Before sliding the material over the end pieces after the end pieces have been glued.



Sewing the end pieces to the vinyl covers.



Sewing the top of the vinyl covers to the top of the foam structure.



Sewing the bottom pieces of the vinyl cover over the foam structure.



Some of the foam pieces in the process of being sewn.



Adding the zippers onto the covered pieces.



Sewing the mesh to the zippers.



Finished foot board piece.



Pretesting the finished product on my daybed using my sister as the patient.



Pretesting one of the zones.



Pretesting again.
posted by ck @ 1:55 PM   0 comments
Press Release
Announcement of Project Progress
Math, Science and Technology Application


Contact:
Caitlyn FOR IMMEDIATE RELEASE
Period 7/8 March 19, 2008


Systems Engineering II: Hospital Bedrail Device

March 19, 2008- Caitlyn is currently a senior at The Marine Academy of Science and Technology on Sandy Hook, NJ. She is planning on majoring in nursing at Wagner College. For this reason, she designed a senior Systems Engineering II project that was related to the field of nursing.

Introduction
Since halfway through her junior year, Caitlyn has been working on brainstorming, researching, designing, and constructing her project, which is to design and construct a working cover to a bed rail that would eliminate the risk of entrapment in all 7 zones in hospital beds.

Background Information
Entrapment is defined as an event in which a patient is caught, trapped or entangled in the spaces in or about the bed rail, mattress, or hospital bed frame. Entrapment can lead to serious injury or death. Between January 1, 1985 and January 1, 2006, the FDA received 691 incidents in which patients were caught, trapped, tangled, or strangled in hospital beds. Of those reported incidents, 413 were deaths, 120 nonfatal injuries, and 158 cases where staff needed to intervene to prevent patient injuries. Although that may not seem like a high number of cases of entrapment, it still is an issue in the medical community.
The FDA first alerted the hospital and nursing home community to this problem in 1995. Since then the Hospital Bed Safety Work Group comprised of representatives from the FDA, hospital bed manufacturers, healthcare organizations such as the American Nurses Association and the American Healthcare Association, consumer groups such as the AARP, and other government agencies have worked together to investigate the problem, identify its causes, and find solutions. They discovered that the key body parts at risk of entrapment are the head, neck, and chest. They also found that 7 major zones of entrapment exist in a hospital bed, as shown in Figure 1, which include:


Within the rail
Under the rail
Between the rail and the mattress
Between rails, at the end of the rail
Between split bed rails
Between the end of the rail and the side edge of the head or foot board
Between the head and footboard and the mattress
posted by ck @ 1:21 PM   0 comments
Wednesday, February 6, 2008
Calendar MP3
posted by ck @ 1:35 PM   10 comments
Tuesday, January 15, 2008
Math and Science Analysis
Introduction
The Hospital Bed Rail Device is a device that is designed to prevent entrapment in all 7 danger zones in hospital beds. Entrapment is any case where a patient gets trapped within the bed rails of the bed frame in a hospital bed. The 7 danger zones include: within the rail, under the rail, between the rail and the mattress, between rails, at the end of the rail, between split bed rails, between the end of the rail and the side edge of the head or foot board, between the head and footboard and the mattress. During the developmental work of this project, 3 major concepts needed to be addressed thoroughly in order to complete this device successfully. They include: science concepts, math concepts, and technology concepts.



Science Concepts

Human Body

ERGONOMICS

Ergonomics, or human factors, is the application of scientific information concerning humans to the design of objects, systems and environment for human use. Ergonomics is commonly thought of as how companies design tasks and work areas to maximize the efficiency and quality of their employees’ work. However, ergonomics relates everything which involves people. Work systems, sports and leisure, health and safety should all embody ergonomic principles if well designed (“Ergonomics”).

For the hospital bed rail device, the ergonomics needed to be researched in order to build the device in a way that would be the most efficient for humans to use. This included researching zippers, velcro, foam shapes, and mesh. While drawing the isometric view, these things became clear. For example, the mesh material with the zippers need to be connected with a strap so that the user could unzip both zippers at the same time. This would be easier for a human to unzip quickly rather than having to search for each small zipper and unzipping each the length of the bed.



ANTHROPOMETRY

Anthropometry, or the measurement of humans, refers to the measurement of human individuals for the purposes of understanding human physical variation. Anthropometry plays an important role in the design of clothing, industrial design, ergonomics, and architecture, where statistical data about the distribution of body dimensions in the population are used to optimize products. Changes in life styles, nutrition and ethnic composition of populations lead to changes in the distribution of body dimensions and require regular updating of anthropometric data collections (“Anthropometry”).

Anthropometry plays a large part in the design of the bed rail device. The main problem in hospital beds is the fact that humans become tangled in their bed. Since humans are getting stuck, it was necessary to research the average size of the human head, neck, and chest (key body parts) in order to ensure that none of the spaces would be large enough to fit any key body part through a hole. These dimensions can be viewed in Table 1.



Technology Concepts

Materials

VINYL

Today vinyl is produced in a broad range of patterns and colors for residential, office, automotive, RV and marine upholstery uses. Marine and RV vinyl are the strongest and most durable. They are designed to be used over and over without showing signs of wear. They are able to withstand sun, are cleaned easily, withstand UV rays, and are waterproof.

MESH

A mesh is similar to fabric or a web in that it has many connected or weaved pieces. The one being used for this project is made from a PVC vinyl coated polyester yarn that is fade resistant. It comes in a wide selection of colors. This mesh is tough and most commonly used for outdoor furniture, umbrellas, and to cover foam on the shoulder and waist straps of backpacks.

FOAM

Solid foams form an important class of lightweight cellular engineering materials. These foams can be classified into two types based on their pore structure. The first type of foams are called open cell structured foams. These foams contain pores that are connected to each other and form an interconnected network. The second type of foams do not have interconnected pores and are called closed cell foams. Normally the closed cell foams have higher compressive strength due to their structures. (“Foam”)

Airtex High Density foam keeps its shape and provides sturdy support. Most popular uses for 4'' foam are camping/sleeping pads, window seats, RV seats, boat seats, general upholstery and general craft projects. Airtex foam should not be cut with a hot wire because it will emit toxic fumes. The foam can be sanded or cut with straight blades instead. The foam slabs come in a variety of thicknesses, from 1” thick to 5” thick. Airtex High Density foam is flame retardant.


Math Computations

Fabric

VINYL

In order to ensure that there would be enough of each type of fabric, it was necessary to create a sewing pattern for each vinyl cover piece. To create the covers, two 29”x28” pieces are needed along with two 78”x28” pieces as shown in figures 2 and 3. Vinyl material is sold 54” wide in increments of yards. Looking at the patterns it is clear that a total of 212” of material would be needed.

28” + 28” + 78” + 78” = 212”

Which means that a total of 6 yards would be needed to make the vinyl covers.

1 yd = 36”
212”/36” = 5.888 yards =
6 yards




POLYESTER MESH


In order to ensure that there would be enough mesh for each piece, it was necessary to create a sewing pattern for each polyester mesh insert. To create the inserts, two 6”x66” pieces are needed along with one 6”x29” pieces as shown in figures 4 and 5. Polyester mesh is sold 56” wide in increments of yards. Looking at the patterns it is clear that a total of 66” of material would be needed since all 3 pieces could be cut from one width of the material.


6.0” wide + 6.0” wide + 6.0” wide = 18” wide <>


This would mean that a total of 2 yards of mesh would be needed.


1 yard = 36”
66”/36” = 1.883 yards = 2 yards

Foam Size


In order to ensure that there would be enough foam to create each piece, an isometric drawing was created to show how much foam was needed. To create each foam piece, two 2”x7”x78” pieces are needed along with two 2”x7”29” pieces, two 4”x5”x78” pieces and two 4”x5”x78” pieces as shown in figure 6. Airtex High Density foam slabs are sold in precut slabs measuring 4”x24”x90”. Looking at figure 6 it is clear that a total of 2 slabs would be needed.


5” wide + 5” wide 5” wide + 5” wide + 7” wide + 7” wide+ 7” wide + 7” wide = 48” wide
1 slab = 24” wide
48” wide/24” wide = 2 slabs




posted by ck @ 1:42 PM   0 comments
Monday, January 14, 2008
Developmental Work: Customer Assembly
Procedures for Customer Assembly



1.Attach Polyester Mesh Pieces as shown in Figures 1 and 2.



2.Place each foam piece into the bed as shown in Figure 3.



3.Attach each piece with the attached Velcro.
posted by ck @ 2:13 PM   0 comments
